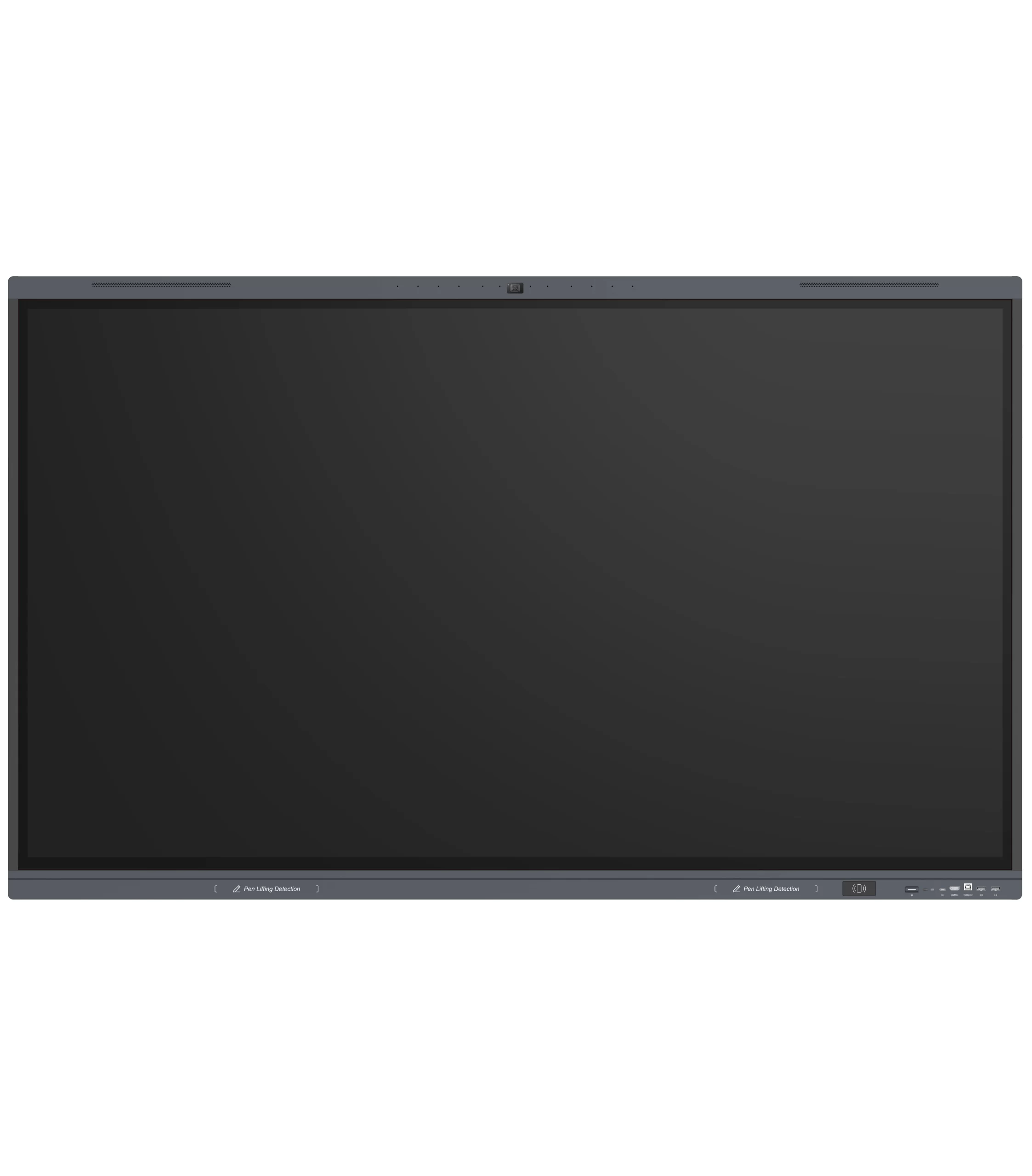

JAV 75” Interactive Smart Board H16S
Key Features of JAV 75″ Interactive Smart Board in Nepal
- Google EDLA Certified
- 4K HD large screen
- RAM 16 G+ROM 256G
- 3588 Chipset, octa-core CPU, Android 13.0
- 48 MP camera, 8 Array Microphone
- AI features
- Supports up to 50 touch points
- Smart Whiteboard Touch Writing
JAV 75" H16s Interactive Smart Board Price in Nepal
- OS: Android 13
- Display: High-color-accuracy, high-brightness (400cd/m² for 75"), 90% NTSC color gamut, flicker-free, hardware low blue light, zero-gap 3mm anti-glare tempered glass
- Touch: 50-point infrared touch, 1 mm precision, anti-palm, pressure-sensitive writing, dual pens with dual colors
- Audio: 2.2-channel, 52W top-mounted aerial sound (2x8W high-frequency + 2x18W mid-low frequency)
- Camera & Mic: Built-in 48MP camera, 8-array mic with noise reduction, gain management, echo elimination, and auto-centering
- Connectivity: Dual USB Type-C (PD100W, network sharing, BYOM), dual gigabit network ports, HDMI OUT & USB Type-C OUT, wireless screen mirroring
- Performance: 8-core CPU & GPU, 8nm process, 6 TOPs AI computing, 8K hardware decoding, 16GB RAM + 256GB storage
- Sensors: Ambient light, NFC, stylus detection
- Extras: EDLA certification, detachable WiFi 6 + BT5.2 module, antibacterial dual-tip pen, intelligent brightness adjustment, energy-saving eye protection
- Warranty: 3 Years
- Price: 295,000/-
JAV 75″ H16S Interactive Smart Board Specification |
|
|
Display Area |
1649(H)x928(V) |
|
Aspect |
16:9 |
|
Resolution |
3840×2160 Pixels |
|
Backlight |
DLED |
|
Response Time |
6.5ms |
|
Refreshing Frequency |
60Hz |
|
Display Color |
1.07G(8 bit + FRC) |
|
Brightness |
400cd/m^2 |
|
Contrast Ratio |
Base on the OC |
|
Viewing Angle |
178(H/V) |
|
Touch Parameters |
|
|
Sensing Type |
Infrared recognition |
|
System |
Windows 10/Windows 8/Windows 7/WindowsXP Android/Linux/MacOSX/Chrome |
|
Touch point |
Upto 50 points touch |
|
Writing Height |
1mm |
|
Response Time |
<=2.5ms |
|
Touch Tool |
Finger,Passive Infrared pen,Active Infrared pen |
|
Accuracy |
+- 1mm(over 90% Area) |
|
Surface Hardness |
Toughened Glass with level 7 of Mohs Standard |
|
Output Coordinate |
32767×32767 |
|
Camera |
|
|
Camera |
48MP 1080HD Camera |
|
Microphone |
8 Array Microphone |
|
Android System Parameters |
|
|
System Version |
Android 13 |
|
Chipset |
RK3588 |
|
CPU |
Cortex-A76x4+Cortex-A55x4 |
|
GPU |
Mali-G610 MC4 |
|
RAM/ROM |
16GB/256GB |
|
Android AIO Interfaces |
|
|
FRONT |
Type-C IN(USB):1 HDMI:1 TOUCH IN:1 USB 3.0:2 TOUCH OUT:1 |
|
REAR |
Type-C IN(USB):1 Type-C OUT:1 HDMI IN:3 HDMI OUT:1 DP IN: Audio IN:1 SPDIF OUT:1 USB 2.0:1 USB 3.0:1 TOUCH OUT:2 RS232:1 RJ45:2 |
|
General Parameters |
|
|
Power Supply |
100-240V 50/60HZ |
|
Overall Power |
500W |
|
Standby Power |
<=0.5W |
|
Speaker Power |
Two Sound Channel/2.2 Sound Channel |
|
Output Power |
2x8W(Front)+2x18W(Top) |
