JAV 86” Interactive Smart Board H18S 2024
Key Features of JAV 86″ Interactive Smart Board in Nepal
- 48MP Camera with AI Features
- 8 array Microphones
- V100 Chipset, octa-core CPU, Android 14
- Original A-grade Panel With 4K UltraHD resolution
- ±1.5mm precision infrared touch writing
- Supports up to 40 touch points

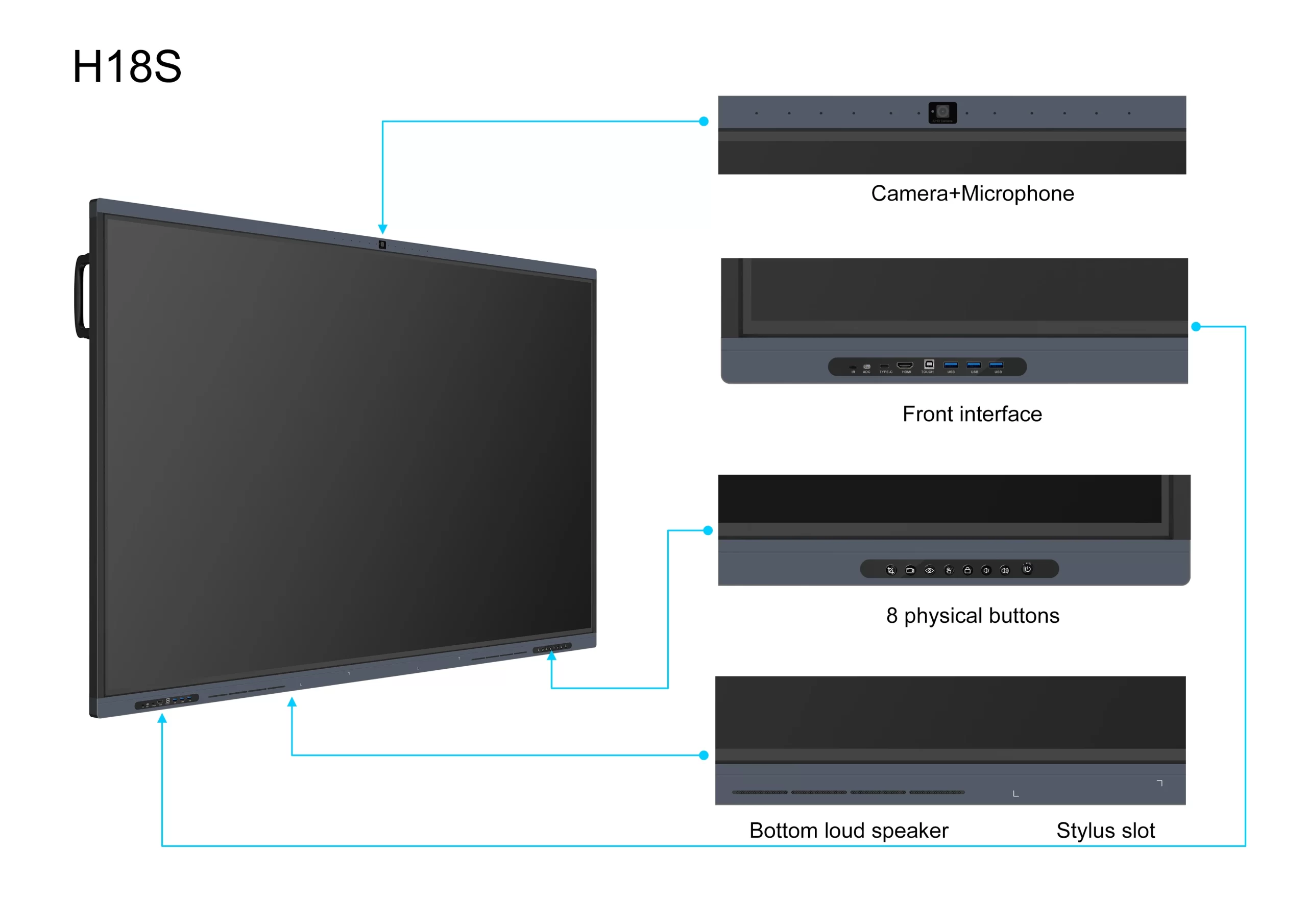

- Front eight-button design, rich functions, one-key direct access
JAV 86" H18S Interactive Smart Board Price in Nepal
-
- OS: Android 14
- Display: 4K UHD display with full channel 4K UI support
- Touch: Interactive Smartboard Supports up to 40-point infrared touch, 1 mm precision, fluent writing
- Camera & Mic: 48MP camera with AI features, 8-array microphones
- Connectivity: Onboard WiFi 2.4G+5G + Bluetooth, front multifunctional interface (USB x 3: Android/PC sharing, Type-C, HDMI input & Touch)
- Performance: 4GB RAM + 32GB storage
- Extras: 8 physical buttons on the front (standby, volume +/-, lock screen, touch lock, eye care, screen recording, screenshot)
- Warranty: 3 Years
JAV 86″ H18S Interactive Smart Board Specification |
|
|
Display Area |
1895(H)×1066(V) |
|
Aspect |
16:9 |
|
Resolution |
3840×2160 Pixels |
|
Backlight |
DLED |
| Response Time |
6.5ms |
|
Refreshing Frequency |
60Hz |
|
NTSC(typ) |
>72% |
|
Display Color |
1.07B(10 bit) |
|
Brightness |
≥ 300cd/m^2 |
| Contrast Ratio |
Base on the OC |
|
Viewing Angle |
178(H/V) |
|
Technology |
Zero Bonding |
|
Touch Parameters |
|
|
Sensing Type |
Infrared recognition |
| System |
Windows 10/Windows 8/Windows 7/WindowsXP Android/Linux/MacOSX/Chrome |
|
Touch point |
40 points touch |
| Writing Height |
<=1.5mm |
|
Response Time |
<=5ms |
| Touch Tool |
Finger,Passive Infrared pen,Active Infrared pen |
|
Accuracy |
+- 1mm(over 90% Area) |
|
Surface Hardness |
Anti-bacteria,Anti-glare tempering glass.Toughened Glass with level 7 of Mohs Standard |
|
Output Coordinate |
32767×32767 |
|
Camera |
|
|
Camera |
48MP 1080HD Camera with AI function |
|
Microphone |
8 Array Microphone |
|
Android System Parameters |
|
|
System Version |
Android14 |
|
Chipset |
V100 6760U |
|
CPU |
Cortex-A55x8 |
| GPU |
Mali-G52*4 |
|
RAM/ROM |
4GB/32GB |
|
Android AIO Interfaces |
|
|
FRONT |
Type-C(USB):1 HDMI:1 Touch:1 USB:3 |
|
REAR |
RS232:1 TOUCH:1 HDMI:1 RJ45:1 USB 2.0:2 TF CARD:1 WIFI 5G:1 WIFI 2.4G:1 AC SWITCH:1 AC IN:1 COAXIAL:1 LINE OUT:1 |
|
General Parameters |
|
|
Power Supply |
100-240V 50/60HZ |
|
Overall Power |
247W |
| Standby Power |
<=0.5W |
|
Speaker Power |
2.0 Sound Channel |
|
Output Power |
2x16W |
