| Product Information |
Product Type |

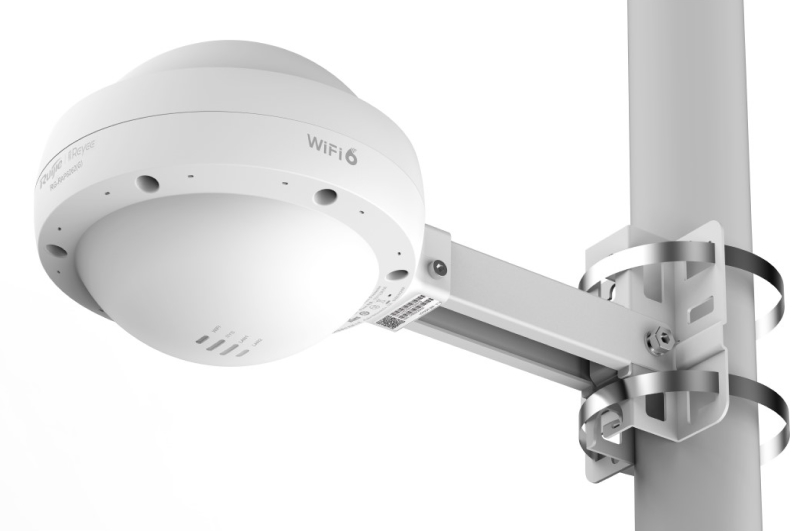

Outdoor AP |
| Hardware Specifications |
Radio Design |
Dual-radio |
|
Spatial Streams |
4 Spatial Streams |
|
2.4 GHz |
2 × 2 MU-MIMO |
|
5 GHz |
2 × 2 MU-MIMO |
|
Max Wireless Speed |
1774 Mbps |
|
6 GHz Support |
No |
|
5 GHz Speed |
1201 Mbps |
|
2.4 GHz Speed |
573 Mbps |
| Antenna |
2.4 GHz |
2 Built-in Omnidirectional Antennas |
|
5 GHz |
2 Built-in Omnidirectional Antennas |
| Dimensions & Weight |
Size |
Ø200 mm × 166 mm |
|
Color |
White |
|
Weight |
≤ 1.2 kg |
| Ports |
Ethernet Ports |
2 × 10/100/1000BASE-T |
| Power Supply |
Power Options |
DC Adapter / PoE+ |
|
Priority |
DC preferred over PoE+ |
|
DC Connector |
12V, 2A |
|
Connector Size |
5.5 mm (outer), 2.1 mm (inner), 10 mm depth |
|
Max Power Consumption |
18 W |
|
PoE Budget |
Not Supported |
| Environment |
Operating Temp |
–30°C to +65°C |
|
Mounting |
Wall / Pole |
|
IP Rating |
IP68 (Water & Dust Resistant) |
| Software |
Max Clients (2.4 GHz) |
64 |
|
Max Clients (5 GHz) |
256 |
|
Total Clients |
256 |
|
Managed Devices |
Up to 300 |
|
IPv6 Support |
Yes |
